Promoting low-cost sustainable technologies, for residents’ pockets and the planet. Our projects and experiments in this area include:
-
A commercial solar oven typically costs at least $200. A solar water heater, if you can find one, costs at least $500. For several years, at the beginning of our work in Palomas, we experimented with various models. One challenge was to develop models that cost less so people could afford to buy them, because we hoped that eventually a local person would produce and sell them - promoting sustainable technology and raising income levels all at once.

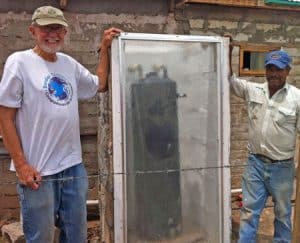

By using donated and recycled materials, we’ve reduced the cost of our solar cooker to about $75 for labor and materials. We use old propane tanks and recycled wood to reduce our water heater costs. Both the solar cooker and the water heater could be produced in our Palomas workshop by local residents. There are several solar cookers around town that receive some use - at our garden and at a school, but there is not great interest yet in starting a business. Promoting these technologies takes a concerted effort, one we are constantly engaged in. Our solar program is listed in the Solar Cookers World Network.
-

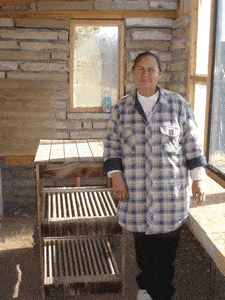

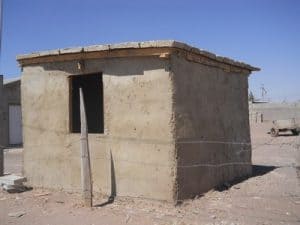

Cement blocks are an expensive building material that provides little insulation from the winter cold and summer heat. But cement block is the primary construction material of most homes along the border. Worse: many homes do not have heat or cooling systems in a climate where temperatures get near freezing in winter and over 100 degrees in summer. Papercrete blocks, made of concrete and recycled paper, insulates far more efficiently. Border Partners has equipment to produce these blocks and has built several structures using papercrete blocks in Palomas. The first was a little greenhouse that our gardeners now use to grow seedlings. In January 2012, Peter Edmunds began Border Partners’ most ambitious building project with papercrete. Hiring five local youth interested in learning construction skills to assist, Peter designed and built an addition to the local library which now serves as an Education Center, complete with 30 computers and internet.
We expanded our papercrete workshop in 2023 with a grant from the North American Development Bank, diverting recycled paper from the local dump to make blocks. These blocks were then used to construct several more small structures across town, including dry toilets and a storage shed for a local school.
-
Over the past several years, we’ve built and installed 13 Biochar stoves designed by local biochar aficionado Bill Knauss in homes around Palomas. Biochar is a charcoal-like residue that acts as a natural fertilizer, and is produced from agricultural by-products decomposed at high temperatures. We use recycled pecan shells, abundant in the region, to produce our biohchar.
These stoves provide an alternative, inexpensive heating resource for families who would otherwise rely on propane gas, while also producing the necessary biomass to produce Biochar for our community gardens.
The benefits of using Biochar as a soil amendment in our gardens has resulted in an approximately 30% increase in crop yields. This comes back to further benefit the community in the form of more fresh food in our greenhouses, for school lunches and families in need. Our project harnesses the potential of biochar to make a positive social, economic, and environmental change. Currently, we’re seeking to expand the project and heat more homes in Palomas for the winter heating season.
-
Many predict that climate change will bring even less rain in coming years to this already-parched land. So, conservation of water is crucial. To provide for a better future use of rain water, Border Partners:
Installed eave troughs and a 700 gallon rain catchment tank on the long building west of our community greenhouses.
Uses drip irrigation hosing to distribute rain water to the garden beds in the community gardens.
Provided rain barrels also to several of our home gardeners to collect water for garden use. We would like to provide more of these, but lost our souce of barrels.
In 2011, a grant from the Border Environment Cooperation Commission (BECC) provided money to build gray water systems at 20 homes. These systems divert waste water from clothes washers to water garden crops, instead of simply sending the water down the drain. We learned that the laundry water had too much salt to use on vegetables. Now, these systems successfully water trees. Tree roots are deeper, giving more time for the soil to filter the salts.
Middle school students put together a solar cooker for installation in local homes.

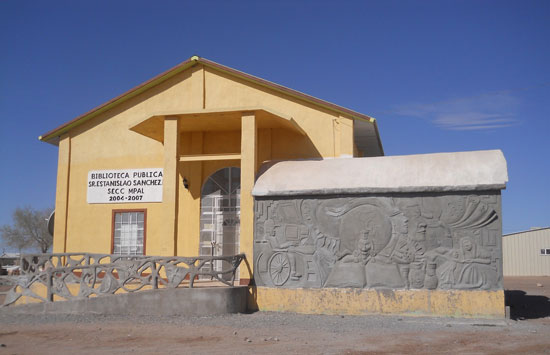

The papercrete addition (right) to the municipal library, which has functioned as the community’s computer and education center year-round for over a decade.
Biochar stove owners Victoria Ibarra (L), Karina Gonzales (C) and Juan Rascon (R), present their home furnaces, a low-cost energy substitute that also produces biochar fertilizer for our community gardens.
Papercrete project coordinator Jose Luis Munoz meets with the North American Development Bank in 2024 as part of initiative to bring papercrete building methods to Puerto Palomas.
